120w Solar Charger

The 120W Solar Charger is designed to charge 40Ah to 250Ah batteries.

FEATURES:

• Made to charge 40AH to 120AH batteries
• High efficiency solar cells
• Weather Resistance ETFE lamination
• Maximum output of 6.67A per hour

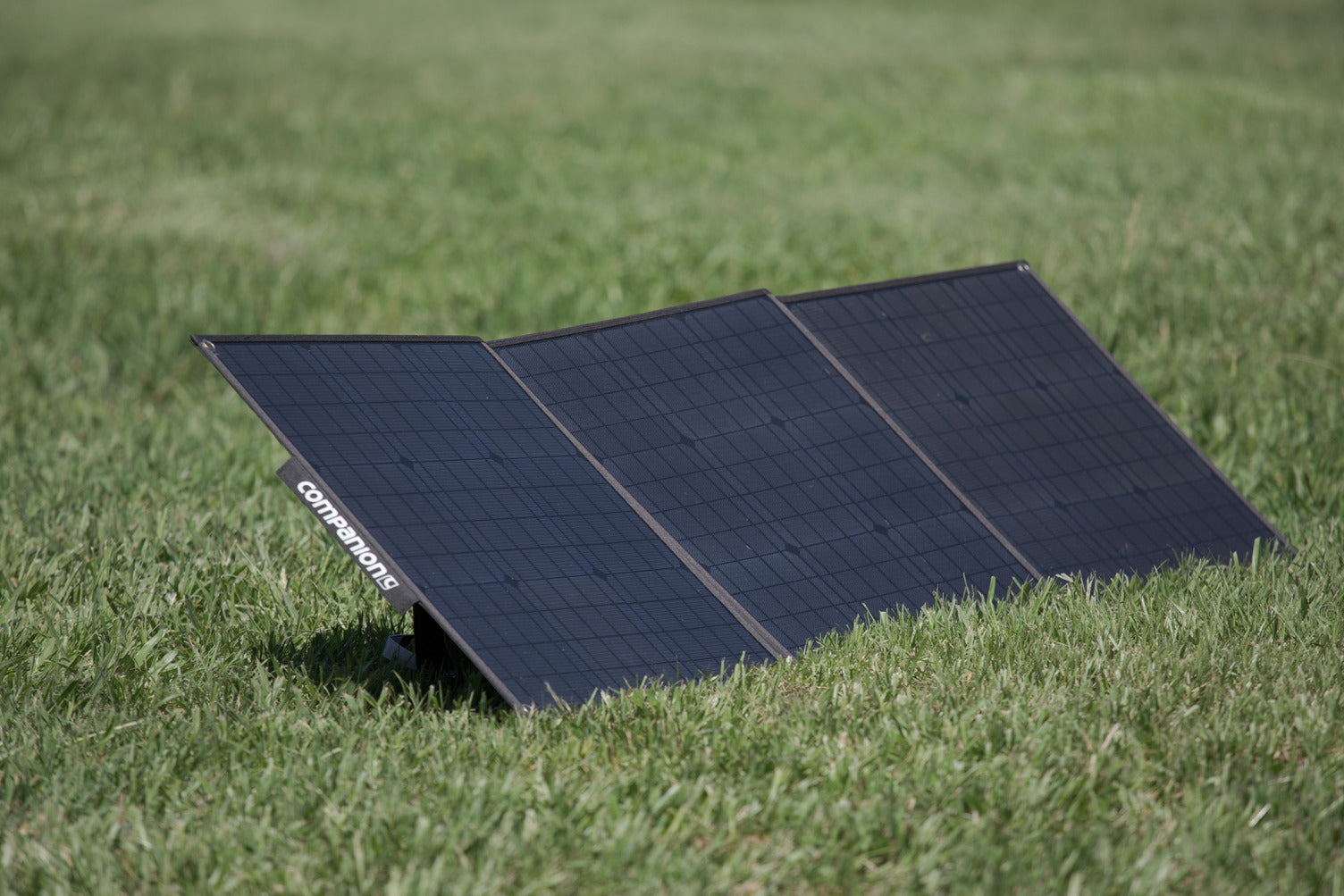

• Inbuilt adjustable stand system for maximised output with peg down point
• Chainable system; connect two 120W solar chargers together to double output
• Reinforced eyelets
• Accessory pocket

SPECIFICATIONS:

• Cell type: A-grade monocrystalline silicon
• Cell Efficiency: 19.5%
• Cell Backing: Copper
• Cell Encapsulation: ETFE Lamination
• Wattage: 120W
• Max Amp Output Per Hour (lmp): 6.67A
• Voltage at Max Power (Vmp): 18V
• Open Circuit Voltage (Voc): 21.6V
• Short Circuit Current (lsc): 7A
• Output Connection: 50A Anderson
• Case Material: 900D Polyester
• Size (folded): 525 x 525 x 60 (mm)
• Size (unfolded): 1550 x 525 x 30 (mm)
• Weight (Panel Only): 5.5kg
• Controller Type: Pulse Width Modulation (PWM) – Adjustable Settings
• Controller Stages: 3
• Controller Amps: 20A
• Types of Batteries it can Charge: AGM, Gel, Calcium, Li-Ion, LiFePO4, LiNiMnCoO2 (NMC)
• Input and Ouput Connectors: 50A Anderson

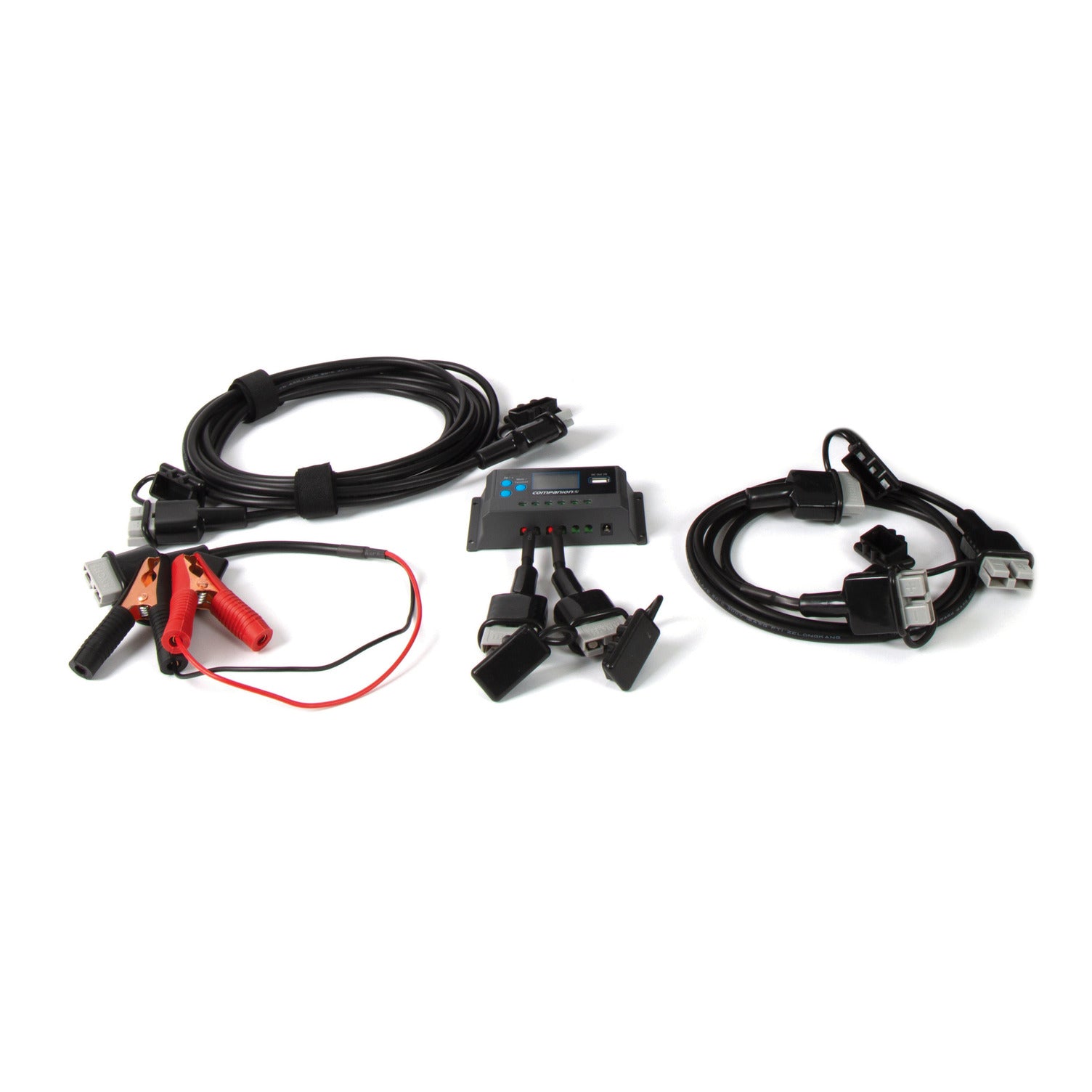

• Pack Contents:
  • 1 x Solar Charger 120W
  • 1 x 20A PWM Controller with 2 x Anderson Connectors
  • 1 x 5m Anderson Cable
  • 1 x 0.5m Anderson to Battery Clamp Cable
  • 1 x 2m Anderson Splitter Cable (for use when linking 2 x 120W solar panels together)
