OCAM

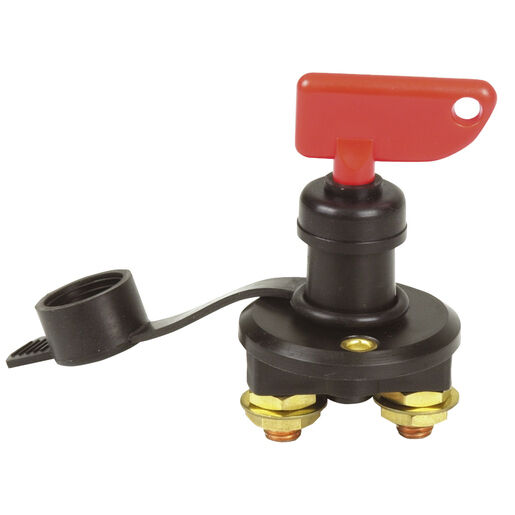

Battery Master Isolator Switch With Removable Key. Rated At 500Amp (Int) And 100Amp (Cont)
Quantity:
Choose options
Quantity:
Battery Master Isolator Switch With Removable Key. Rated At 500Amp (Int) And 100Amp (Cont)
For any 12/24V applications when required a manual isolator. You can use this for dual batteries or winch isolation etc.
Specifications:
| Bore Ø [mm] | 6,5 |
| Capacity at 24V | 100 A |
| Combi Switch Function | Lock |
| Control Design | Turn knob control |

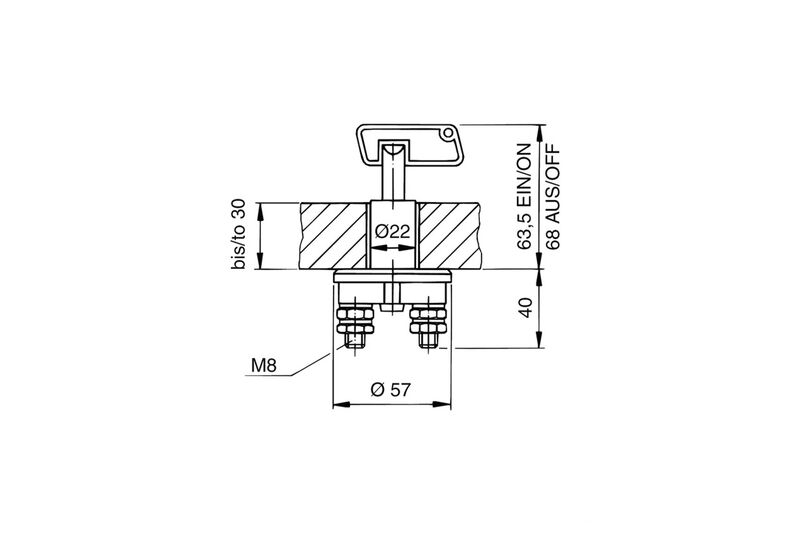

| Fitted Diameter [mm] | 22 |
| Hole Pitch 1/ Hole Pitch 2 | 38 mm |
| Housing Colour | black |
| Housing material | Plastic |
| Number of Poles | 2 |
| Operating Mode | Manual (hand operated) |
| Operating voltage from [V] | 12 |
| Operating voltage to [V] | 24 |
| Plug Type | Screw Contact |
| Port Type | 2 x M8 |
| Protection Type (IP Code) [#2] | IP4X |
| Supplementary Article/Info 2 | Removable key |
| To wall thickness [mm] | 30 |
